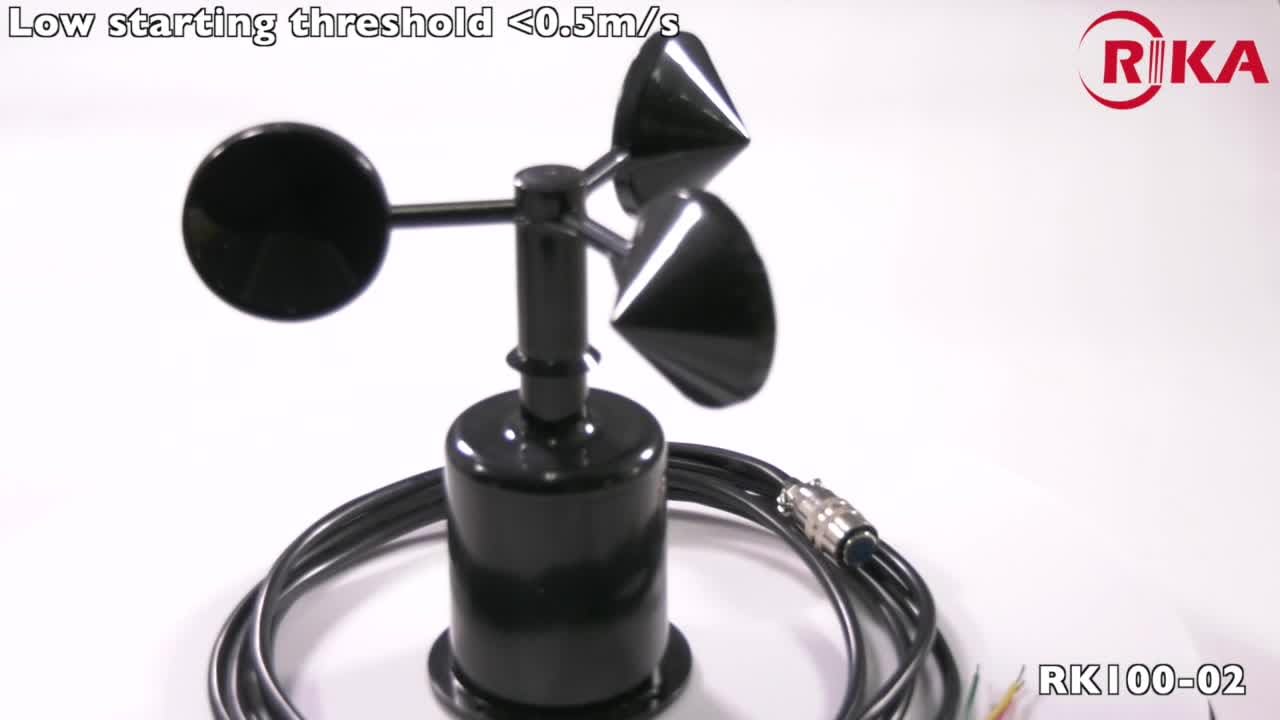

Malockos RK100-02 Plastic 3 Cup Outdoor Analog 4-20mA Output Wind Speed Meter Sensor Anemometer RS485 with CE

Products DescriptionRK100-02 Plastic Wind Speed Sensor-ABS plastic wind cups-Multiple Output :Pluse,4-20mA,0-5V,RS485-Low starting threshold <0.5m/s-Accuracy:±(0.3+0.03V)m/s-Easy Installation-CE，EMC，ISO9001，TUV CertificateProduct IntroductionThe RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell.It can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.Product Features* Low starting threshold* Overall carbon fiber material* Strong corrosion resistant ability* Light structure* Various output signals optional* Easy InstallationProduct ParamentersOutputPulses4-20mA0-5VRS485Supply Voltage5V,12V-24V5V,12V-24V5V,12V-24V5V,12V-24VLoad Capacity>1kΩ<500Ω(typ 250Ω)>1kΩRange0-45m/s0-45m/s0-45m/s0-45m/sAccuracy±(0.3+0.03V)m/s. (V is the current wind speed)Starting Threshold<0.5m/sLimit Wind Speed50m/sIngress ProtectionIP65Operating Temperature -40℃~ +50℃Cable GradeNominal voltage:300V ,Temperature grade:80℃ Weight(unpacked)170gDimensionCup rotor:179mm,Height:160mm Main materialCarbon fiberStorage Condition 10℃-50℃@20%-90%RHProduct DetailsProduct Dimension & MountingConnector dimensionø15mm (recommended reserving ø 25mm for wiring).Flange InstallationFlange mountedfix four screws on the bracket and keep the product horizontal.Product PackagingTestimonialProduct ApplicationWhy Choose UsCertificationsFAQQ: Are you the final manufacturer?A: Yes, We are SE

• Type: Hand Tool Parts
• Origin: Mainland China
• : 1 year
• Type: Wind anemometer
• Certification: CE, ROHS
