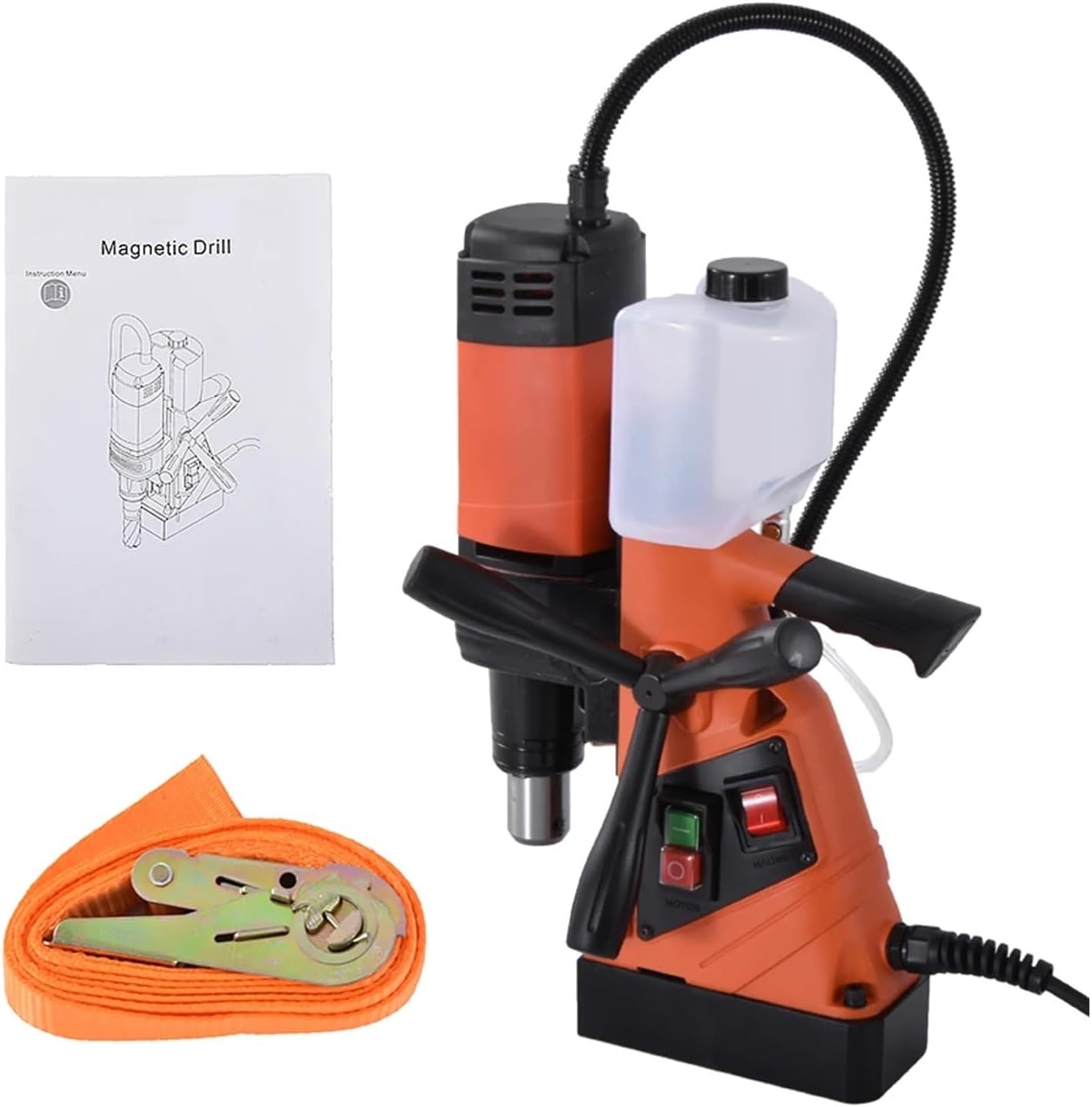

Automatic Magnetic Drilling And Tapping Machine DX-35 10-35MM Small Base Drill 1100W with High Efficiency

Specifications:Name:DX-35 Magnetic DrillPower: 1100WDrilling diameter: 35 mmMinimum cutter depth: 5 mmCountersunk hole: 10-35mmTwist drill maximum diameter: 13 mmMaximum tool capacity: 35 mmMaximum cutting depth: 50 mmAdjust the height: 210 mmSize:55*22*24cmWeight: 16KGNote: Comes with 3 wrenches, a belt, a drill chuck, and a kettle.Picture showing:Specifications:Features1. Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor.2.Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210mm.Rail positioning function, which can make the motor stop at any position to prevent self-rig decline and damage cutter.3.Design of internal self-lubricating function ensure longer life of gear.4.Automatic internal cooling system, external cooling ring design to prevent water overflow into the gear box, the overall design makes the appearance more beautiful.5.Ergonomically designed handle and best usage design of torque.6. Open handle, which is more beautiful and conform ergonomic design, More comfortable to grip.7. Design of overall aerial lifting holes and insurance rope holes guarantee double protection for the safety of the aerial personnel and equipment.8. Design of overall tilt body ensure its overall rigidity, and improve drilling accuracy.9.Magnetic suction protection ensure that the motor does not start on non-metallic flat or low suction.10. Magnetic bottom wear design, which delay the wear of magnet bottom and extend service life.Magnetic base with maximum suction up to 10000N ensure the safety and reliability during drillingoperations.

• 1. Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor.
• 2.Two-way sliding rails, which make the motor height be adjustable according to the different
• requirement. Stroke up to 210mm.
• Rail positioning function, which can make the motor stop at any position to prevent self-rig decline
• and damage cutter.
• 3.Design of internal self-lubricating function ensure longer life of gear.
• 4.Automatic internal cooling system, external cooling ring design to prevent water overflow into
• the gear box, the overall design makes the appearance more beautiful.
• 5.Ergonomically designed handle and best usage design of torque.
